In both human and veterinary healthcare, monitoring respiratory function is critical for patient safety during anesthesia, critical care, and emergency situations. Capnography and capnometry are two vital techniques used to assess the carbon dioxide (CO2) levels in a patient’s exhaled air, helping clinicians evaluate ventilation, oxygenation, and the overall effectiveness of respiratory management. While both methods provide essential insights into a patient's respiratory status, they differ in terms of the information they provide and their specific uses.
What is Capnography?
Capnography refers to the continuous measurement and graphical representation of CO2 concentrations in a patient’s exhaled air over time. This process provides a real-time waveform known as a capnogram, which shows the rise and fall of CO2 levels during the respiratory cycle. The primary focus of capnography is to monitor end-tidal CO2 (ETCO2), which is the amount of CO2 present in the air at the end of an exhalation. The capnogram gives a visual representation of the patient’s breathing patterns, rate, and overall respiratory function.
Capnography is invaluable in various clinical settings, including:
Anesthesia Monitoring: To assess the adequacy of ventilation and depth of anesthesia.
Critical Care: To monitor patients in intensive care units (ICUs) and detect early signs of respiratory compromise.
Emergency Medicine: To evaluate ventilation during resuscitation efforts and in trauma care.
What is Capnometry?
Capnometry, on the other hand, refers specifically to the measurement of CO2 levels during exhalation, typically presented as a numerical value rather than a continuous waveform. Capnometry provides the clinician with a direct, real-time reading of the end-tidal CO2 (ETCO2), which can be crucial for assessing ventilation and gas exchange efficiency. Unlike capnography, which provides a detailed graphical waveform, capnometry offers a simpler readout of CO2 levels, making it more suitable for situations where quick numerical data is needed.
While capnometry doesn't offer the same level of detail as capnography, it is still an essential tool in many settings, particularly:
Ambulance Transport: To monitor ventilation during transport when a simple numerical value is required.
Routine Anesthesia: For consistent monitoring of ETCO2 during non-complex procedures.
Ventilation Assessment: In cases where healthcare providers need to assess whether a patient is breathing adequately.
Capnography vs. Capnometry: Understanding the Key Differences
Capnography and capnometry are both essential techniques for measuring carbon dioxide (CO2) levels in exhaled air, providing valuable information about a patient’s respiratory function. However, they differ significantly in terms of the data they offer and how they are applied in clinical settings.
The primary difference between capnography and capnometry lies in the type of data they provide.
Capnography offers a continuous graphical representation of CO2 levels throughout the entire respiratory cycle, known as a capnogram. This waveform not only reflects the CO2 concentration but also gives detailed information about the patient’s ventilation status, breathing patterns, and even potential airway problems. In contrast, capnometry is more straightforward, providing only a numerical value representing the end-tidal CO2 (ETCO2) concentration. This means that capnography offers a comprehensive visual record, while capnometry gives a simple numerical reading, making it more suitable for environments where real-time CO2 data is needed but detailed analysis of respiratory patterns is unnecessary.
Another significant difference is the level of real-time monitoring. Capnography allows for continuous, uninterrupted monitoring, which is crucial in critical care situations like anesthesia or intensive care. The waveform data from capnography helps clinicians identify subtle changes in respiratory function, such as hypoventilation (under-breathing) or hyperventilation (over-breathing), and adjust treatment accordingly. On the other hand, capnometry provides a snapshot of the CO2 levels at the end of the exhalation phase, giving clinicians immediate but less detailed feedback about the patient’s ventilation status. This makes capnometry suitable for more routine or low-risk situations where immediate, real-time CO2 measurements are required without the need for continuous monitoring of ventilation patterns.
In terms of complexity, capnography is more intricate, as it involves interpreting the detailed capnogram waveform. Clinicians must assess the various phases of the exhalation cycle, such as the inspiration phase, alveolar phase, and end-tidal point, to evaluate the patient’s respiratory mechanics and identify potential issues. Capnometry, by contrast, is simpler and provides only a numerical ETCO2 reading, which makes it easier and quicker to interpret, especially in emergency or transport situations. The simplicity of capnometry makes it ideal for use in ambulances or during short-duration procedures, where a detailed waveform isn’t necessary, but monitoring ventilation is still important.
The cost and equipment size also differ between these two methods. Capnography generally requires more sophisticated and larger equipment, as it needs to integrate with the patient’s breathing circuit and continuously monitor CO2 levels in real-time. This makes capnography more expensive, but the added complexity provides greater diagnostic capabilities. Capnometry, with its simpler design, is typically more compact and less expensive. The smaller, portable devices used for capnometry are particularly beneficial in settings where space is limited or during transport, as they are easier to use and require less setup.
| Feature | Capnography | Capnometry |
| Data Type | Continuous waveform (capnogram) | Numerical value (ETCO2 level) |
| Real-Time Monitoring | Yes, provides continuous visual feedback | Yes, provides numerical CO2 measurement |
| Complexity | More complex, involves waveform interpretation | Simpler, just displays a numerical reading |
| Primary Focus | Detailed monitoring of CO2 and ventilation patterns | Provides ETCO2 level for basic ventilation assessment |
| Applications | Anesthesia, ICU, critical care, emergency medicine | Anesthesia, patient transport, routine monitoring |
| Diagnostic Capability | Can detect ventilation issues, airway problems, and more | Primarily confirms ETCO2 levels, less diagnostic |

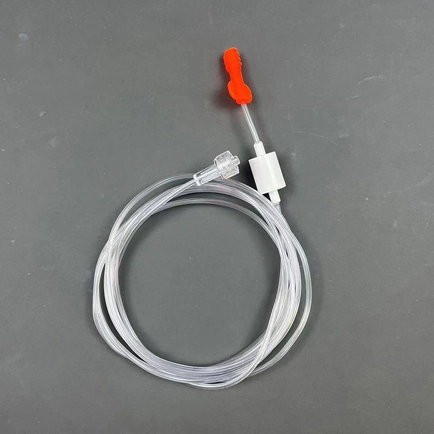

| Equipment Size | Larger, integrated into breathing circuit | Smaller, external sensor with sampling tube |
| Cost | More expensive due to advanced functionality | More affordable due to simplicity |
Clinical Importance of Capnography and Capnometry
Anesthesia Monitoring: In both veterinary and human anesthesia, capnography plays a crucial role in ensuring the patient is adequately ventilated. Monitoring CO2 levels allows the anesthesiologist to adjust the anesthetic depth and ventilation settings in real-time. Capnometry is often used for routine procedures where continuous waveform analysis is not necessary, but ETCO2 data is still essential for safe anesthesia management.
Early Detection of Respiratory Issues: Capnography can detect subtle changes in the patient’s breathing pattern, such as hypoventilation (inadequate ventilation) or hyperventilation (excessive ventilation). By analyzing the capnogram, healthcare providers can assess airway patency, lung compliance, and the efficiency of ventilation. Capnometry provides a quick numerical value, which, while less detailed, is useful for confirming ETCO2 levels and ensuring adequate ventilation.
Ventilator Management: Both capnography and capnometry are used to assess the efficiency of mechanical ventilation. The numerical ETCO2 readings from capnometry help assess whether the ventilator is delivering the correct tidal volume and ensuring proper gas exchange. Capnography, with its continuous waveform, helps track trends in ventilation and detect potential issues such as endotracheal tube displacement or obstructions in the airway.
Cardiac Arrest and Resuscitation: In cases of cardiac arrest, capnography is an invaluable tool for monitoring the effectiveness of chest compressions. During CPR, the capnogram can show if there is any circulation of blood, indicated by the presence of CO2 in the exhaled air. A sudden increase in ETCO2 can indicate return of spontaneous circulation (ROSC), helping clinicians assess the success of their resuscitation efforts. Capnometry is used for quick assessments during transport or resuscitation when continuous waveform data is not necessary.
Transport and Emergency Medicine: In emergency medical services (EMS), capnometry is preferred for its simplicity and speed. Paramedics can quickly assess a patient’s CO2 levels during transport, ensuring that the airway is patent and the patient is adequately ventilated. While capnography is valuable in the hospital, capnometry’s ease of use makes it more practical for quick assessments in the field.
