Capnography is an essential tool in veterinary anesthesia and critical care, providing real-time monitoring of the carbon dioxide (CO2) concentration in a patient’s exhaled breath. This measurement offers invaluable insight into a pet’s respiratory function, anesthesia depth, and overall health during medical procedures. The two primary methods used for capnography are mainstream and sidestream capnography, each with its own advantages, challenges, and ideal uses. Understanding the differences between these two technologies can help veterinary professionals make informed decisions about the best approach for patient monitoring.
What is Capnography?
Capnography is the process of measuring the concentration of carbon dioxide in exhaled air. It is commonly used in anesthesiology to monitor a patient’s ventilation status, ensure proper oxygenation, and detect any changes in respiratory function. The capnogram, or waveform generated from capnography readings, provides key data such as the patient’s end-tidal CO2 (ETCO2), respiratory rate, and overall ventilation. This information is crucial during surgeries or any situation where a pet is under anesthesia.
Mainstream Capnography
In mainstream capnography, the CO2 sensor is placed directly in the breathing circuit, usually at the endotracheal tube or respiratory interface. The sensor measures the CO2 content in the exhaled air immediately as it passes through the device.
Advantages of Mainstream Capnography:
Real-Time Measurements: Mainstream sensors provide instantaneous readings of CO2 levels, offering real-time, direct feedback on the patient’s ventilation status.
No Sample Line: Since the sensor is integrated into the breathing circuit, there is no need for a sample line, which reduces the risk of sample contamination or loss of data.
Accurate Data: With minimal delay in the measurement process, mainstream capnography offers highly accurate and direct results.
Challenges of Mainstream Capnography:
Bulkier Equipment: Mainstream sensors can be relatively large and may require more space in the breathing circuit, which could be a concern in small patients or in limited space environments.
Potential for Obstruction: If the sensor is positioned incorrectly, it can cause obstructions in the airflow, leading to inaccurate readings or increased resistance in the respiratory circuit.
Heat Generation: Some mainstream capnographs generate heat from the sensor, which could cause patient discomfort, especially in sensitive or very young animals.
Sidestream Capnography

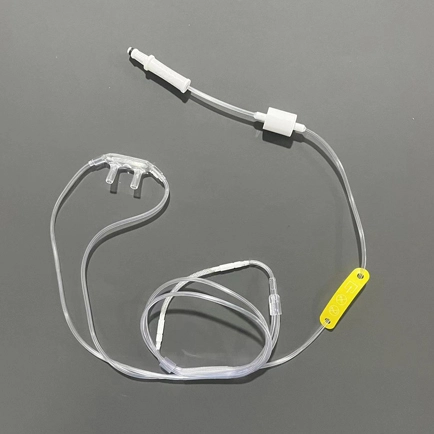

Sidestream capnography works by drawing a small sample of exhaled air through a sampling tube, which is then analyzed by a CO2 sensor placed away from the patient, often in the anesthesia machine or monitor. This allows for the measurement of CO2 levels without placing the sensor directly in the breathing circuit.
Advantages of Sidestream Capnography
Compact and Lightweight: The sampling tube and sensor are typically smaller and easier to integrate into the monitoring system, making it ideal for small or pediatric animals.
Flexible Placement: Since the sensor is not part of the breathing circuit, there is more flexibility in where the sensor can be placed, avoiding any obstruction or interference with the patient’s airway.
Reduced Risk of Obstruction: As the sample is drawn from the exhaled air through the tubing, there is little risk of obstructing the airflow or causing breathing resistance in the patient.
Challenges of Sidestream Capnography
Delayed Readings: The sample must travel through the tubing to the sensor, which results in a slight delay in reading, typically around 1-2 seconds. This can be critical in fast-changing clinical situations.
Potential for Contamination: Because the sample is transported through tubing, there is a small risk of contamination or water condensation in the sample line, which could lead to inaccurate readings.
Maintenance: The sample line can become blocked or kinked, requiring regular maintenance to ensure accurate readings. Additionally, moisture can accumulate in the tubing and affect the sensor’s performance.
Mainstream vs Sidestream: When to Use Each in Veterinary Practice
The choice between mainstream and sidestream capnography often depends on several factors, including the size of the animal, the clinical setting, and the specific requirements of the procedure.
Mainstream Capnography is ideal for situations where real-time, highly accurate CO2 monitoring is essential, such as during critical surgeries, procedures with high-risk anesthesia, or emergency care. It is also often preferred in larger animals or when using mechanical ventilation, where immediate feedback on ventilation status is required.
Sidestream Capnography, on the other hand, is particularly useful in small animal anesthesia, pediatric patients, and cases where space constraints or limited equipment size may be an issue. It’s also more suitable for routine monitoring in outpatient procedures or when there is less concern about immediate, real-time data.
Choosing the Right Capnography Method for Veterinary Applications
In veterinary practice, both mainstream and sidestream capnography offer valuable insights into a patient’s respiratory status, but the choice of technology should be carefully considered. For example:
For Small Pets or Exotic Animals: Sidestream capnography is often preferred due to its small size and flexibility, making it easier to work with small or fragile animals.
For Large Animals: Mainstream capnography is ideal, especially in cases involving large surgical procedures or mechanical ventilation, where precise, real-time measurements are critical.
For Emergency Situations: If a pet is undergoing a critical procedure or in distress, the quick, accurate readings provided by mainstream capnography might make it the more appropriate choice.
Conclusion
Both mainstream and sidestream capnography offer distinct benefits and limitations in veterinary medicine. The choice between them depends on the specific needs of the practice, the size and condition of the patient, and the level of accuracy and immediacy required. As veterinary technology continues to advance, understanding these differences will enable veterinary professionals to make more informed decisions to ensure the best care for their patients. By incorporating capnography into routine monitoring, veterinarians can significantly improve patient outcomes and enhance the safety of anesthesia and critical care procedures.
