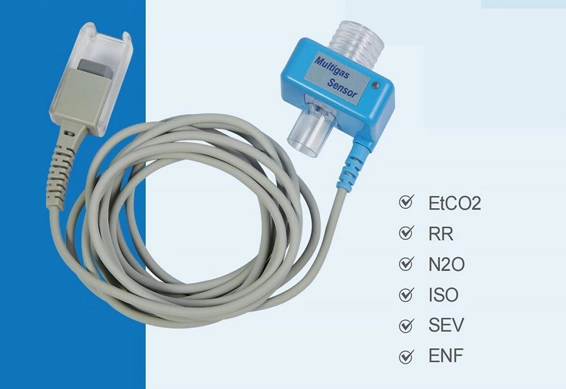

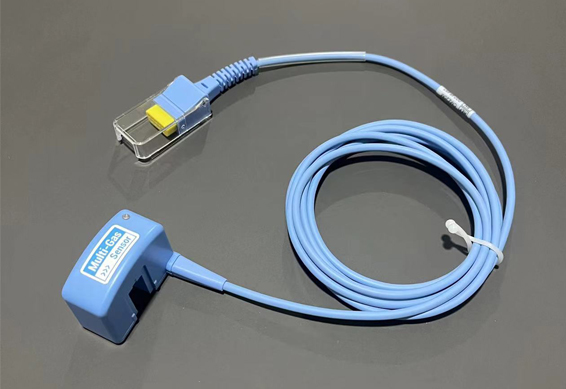

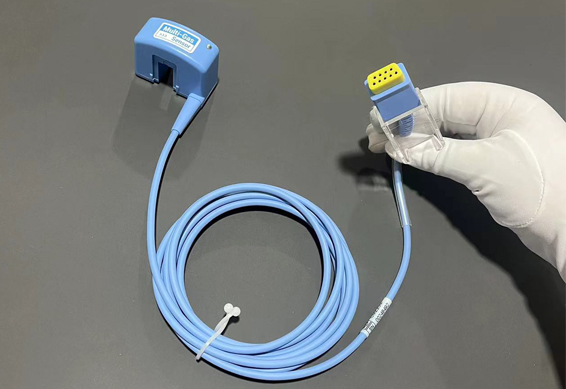

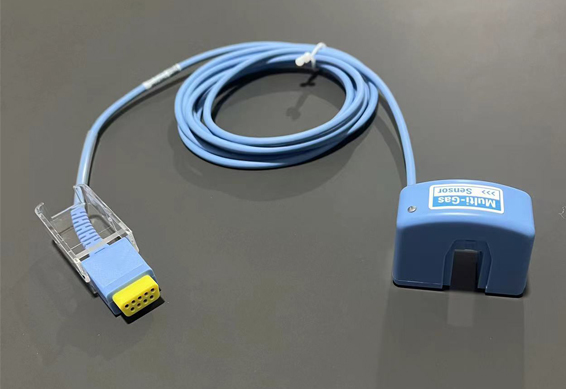

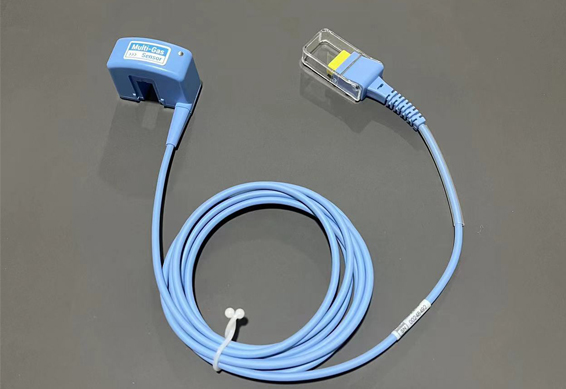

Mainstream Anesthesia Gas Sensor

  • Fast response - short warm-up time, display waveform within 15s.

  • All-solid-state design - strong and durable to cope with complex use environments.

  • Easy to use and maintain - no user calibration required.

Get Price
Specification Details

Specification of Mainstream Anesthesia Gas Sensor

ProjectParameter Description
ItemsEtCO2，RR，N2O，ISO，SEV，ENF
CO2 Range0-15%
CO2 Accuracy±（0.2% + 5%）@ 0-10%
±（0.2% + 8%）@ 10-15%
RR Range3-150bpm
RR Accuracy± 1bpm
N2O Range0-100%
N2O Accuracy± (2% + 3% of reading)
ISO Range0-8%
ISO Accuracy± (0.15% + 5% of reading)@0-5%
± (0.3% + 5% of reading)@5-8%
SEV Range0-8%
SEV Accuracy± (0.15% + 5% of reading)@0-5%
± (0.3% + 5% of reading)@5-8%
ENF Range0-8%
ENF Accuracy± (0.15% + 5% of reading)@0-5%
± (0.3% + 5% of reading)@5-8%
Operating temperature0 - 40 °C
Operating atmospheric pressure70 - 120 kPa
Operating humidity10-95%, non-condensing
Storage temperature-20 - 70 °C
Storage atmospheric pressure50 - 120 kPa
Water ResistanceIPX4‒ Splash-proof (sensor head only)
Warm up time15s
Adult airway adapter≤ 6ml
Infant airway adapter≤ 1ml
Dimensions48mm * 24.3mm * 32.8mm
Weight28g (not include cable)


Details of Mainstream Anesthesia Gas Sensor

Quick Details of Mainstream Anesthesia Gas Sensor

The respiratory gas detection module, developed based on NDIR technology, can measure CO2, N2O, and anesthetic gases. It has high integration, small size, and is sturdy and durable. The module uses a standard RS232 communication interface, which can be quickly integrated into monitors or other medical systems that need to monitor respiratory gases.
