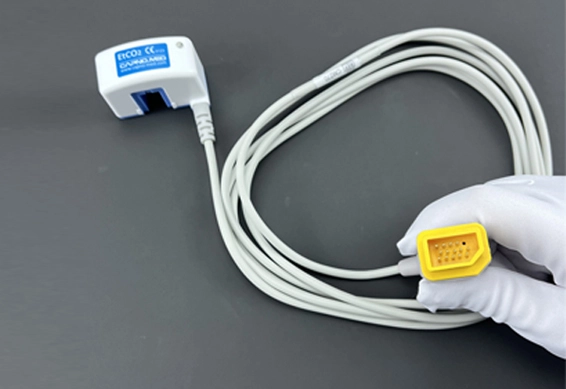

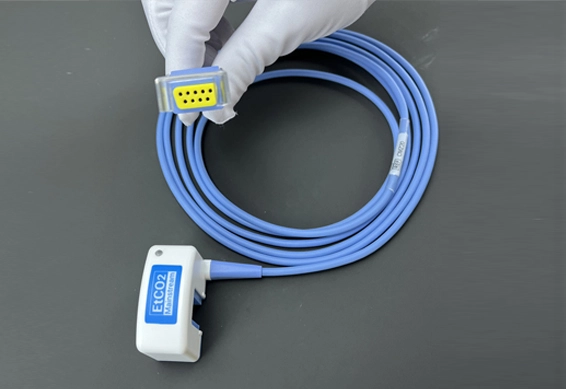

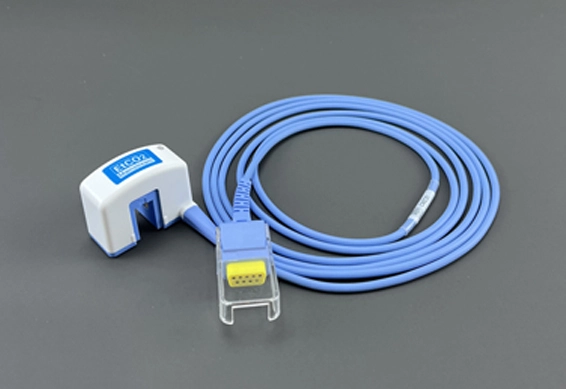

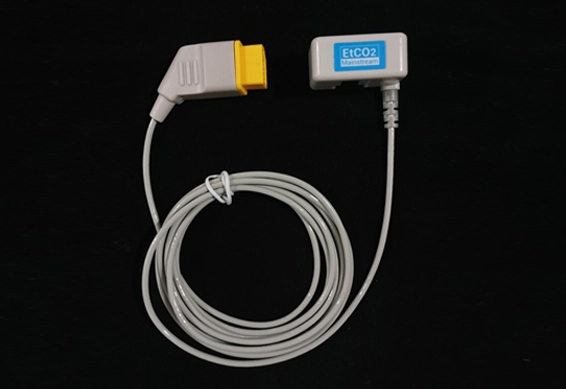

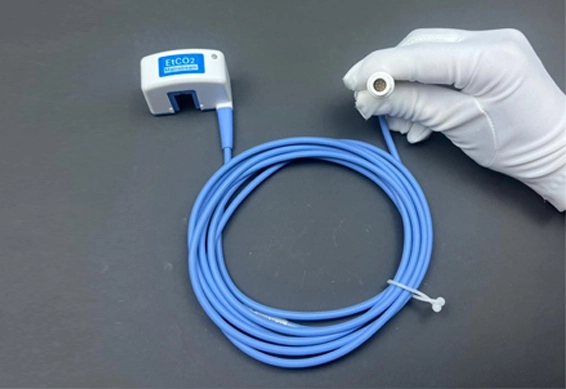

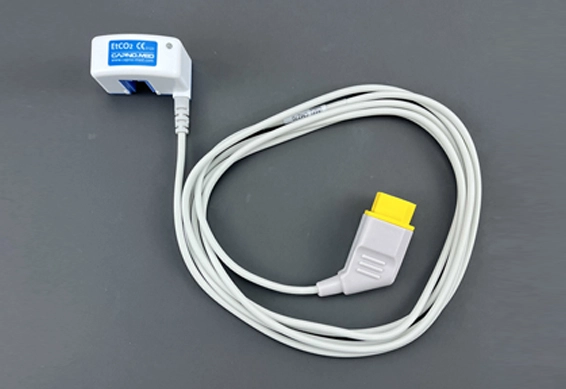

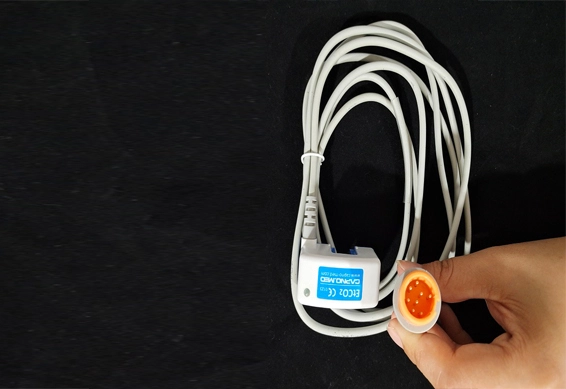

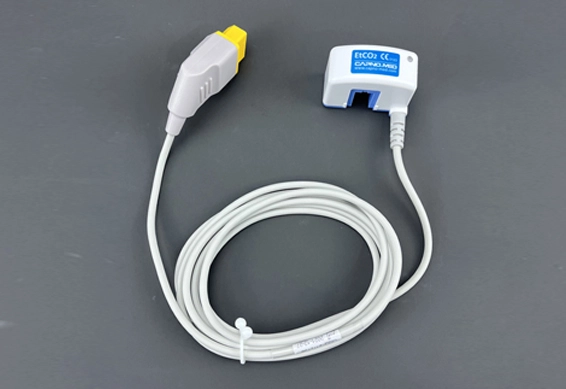

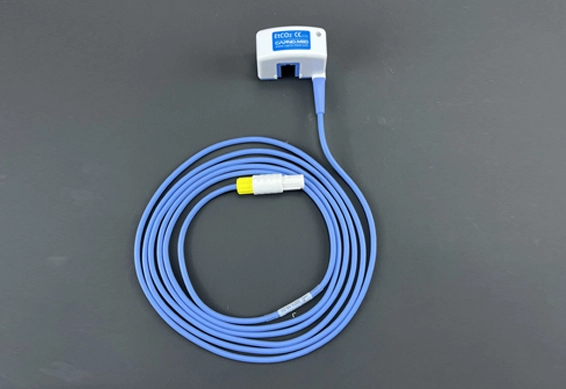

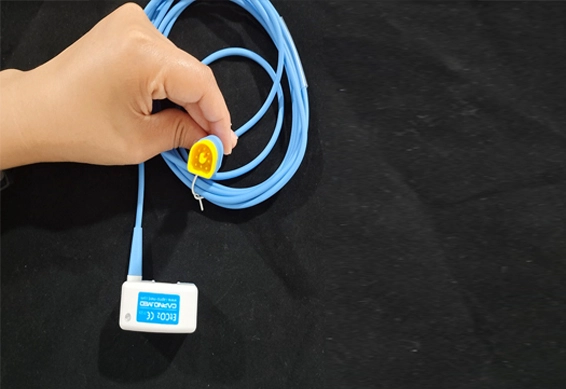

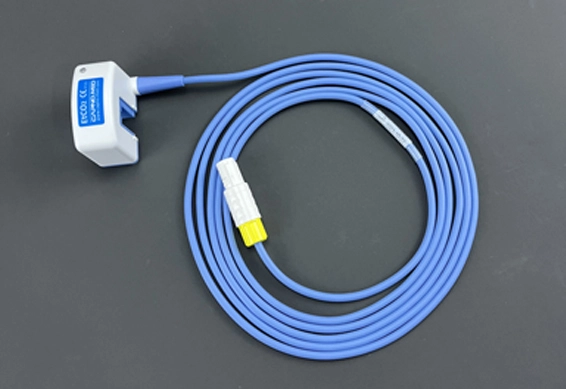

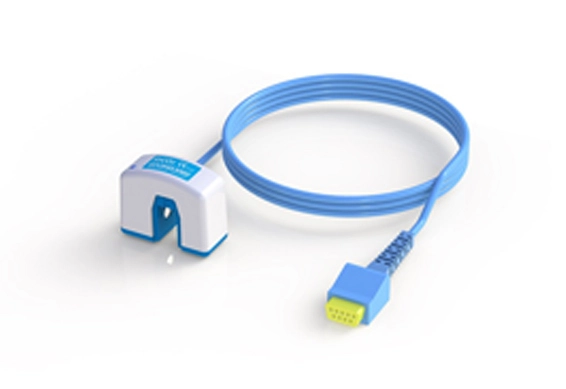

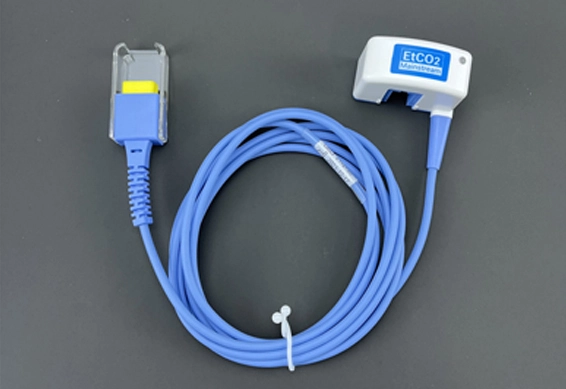

Mainstream Capnography Sensor

  • Complete model: Compatible with equipment from many well-known manufacturers around the world, with wide compatibility;

  • Using medical TPU plastic and low impedance wire: It has the advantages of good texture, bending resistance, corrosion resistance, and stable waveform;

  • Gold-plated nickel-plated equipment end connection hardware and electrode surface: Excellent electrical conductivity, ensuring full contact and reliable connection;

  • Using imported electronic components: It has the advantages of accurate numerical value and stable waveform.

Get Price
Specification Details

Specification of Mainstream Capnography Sensor

ProjectSpecifications
Principle of OperationNon-dispersive infrared(NDIR) single beam optics, dual wavelength, no moving parts.
Initialization TimeCapnogram displayed in less than 3 seconds，full specifications within 3 minutes(At 25°C)
CO2 Measurement Range0 - 114 mmHg; 0 - 15 %; 0 - 15.2 kPa
CO2 Rise TimeRise Time Less than 80 ms
CO2 Resolution0.1mmHg 0 to 38 mmHg.
0.25 mmHg 39 to 114mmHg.
CO2 Accuracy0 - 40mmHg ±2 mmHg.
41 - 76mmHg ±5% of reading.
77 - 114 mmHg ±8% of reading.
Above 80 breaths per minute ±12% of reading.
* Note: Gas temperature at 25°C.
CO2 StabilityShort term drift: Drift over four hours shall not exceed 1 mmHg maximum.
Long term drift: Accuracy specification will be maintained over a 120-hour period.
Sampling Frequency100Hz。
Respiration Rate Range3 to 150 breaths per minute.
Respiration Rate Accuracy±1 breath.
TemperatureOperating: 0 to 40°C; Storage: -40 to 70°C; Transport: -40 to 70°C.
HumidityOperating: 10 to 90% RH, non-condensing; Storage: 10 to 90% RH, non-condensing. Transport: 10 to 90% RH, non-condensing.
Atmospheric PressureOperating: 400-800 mmHg; Storage: 400-800 mmHg; Transport: 400-800 mmHg.
Water ResistanceIPX4 - Splash-proof - Sensor only.
Sensor Weight<85g
Sensor SizeDeep*Wide*High: 48mm * 24.3mm * 35.5mm.
Cable Length2.4m


Details of Mainstream Capnography Sensor

Quick Details of Mainstream Capnography Sensor

Employed in conjunction with carbon dioxide function monitors and ventilators, it accurately and swiftly collects end-tidal carbon dioxide values, generating visualizable curves. Both reusable and disposable product consumables are available.

Features of Mainstream Capnography Sensor

  1. Boasting a comprehensive range of models, it is adaptable to numerous renowned global manufacturer devices, demonstrating extensive compatibility.

  2. Crafted from medical-grade TPU plastic and low-impedance wires, it exhibits superior texture, bend resistance, corrosion resistance, and waveform stability.

  3. The device-end connectors and electrode surfaces are gold and nickel-plated, ensuring excellent conductivity and reliable contact at the connection points. Utilizing imported electronic components, it offers accurate values and stable waveforms.
